The Canadian Shield Medical Mask Automation Line & Vision System is a proprietary, turnkey solution which allows manufacturers to compete directly with overseas producers when it comes to quality, production, and price.
100% Designed and Manufactured in Ontario, Canada
The Canadian Shield Automation & Vision Systems
The Canadian Shield Medical Mask Automation Line & Vision System is a proprietary, turnkey solution which allows manufacturers to compete directly with overseas producers when it comes to quality, production, and price.
100% Designed and Manufactured in Ontario, Canada
AUTOMATION PRODUCTS

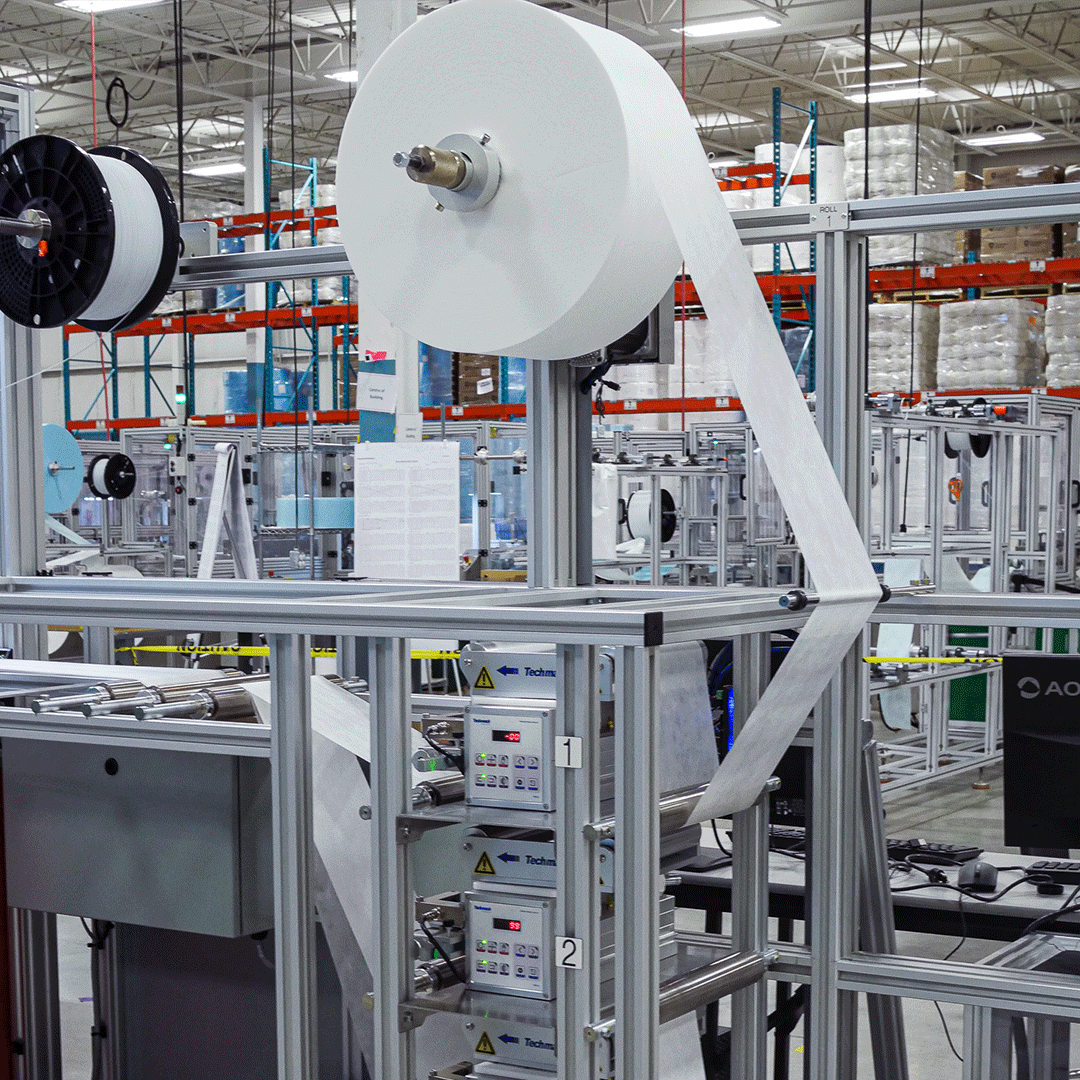

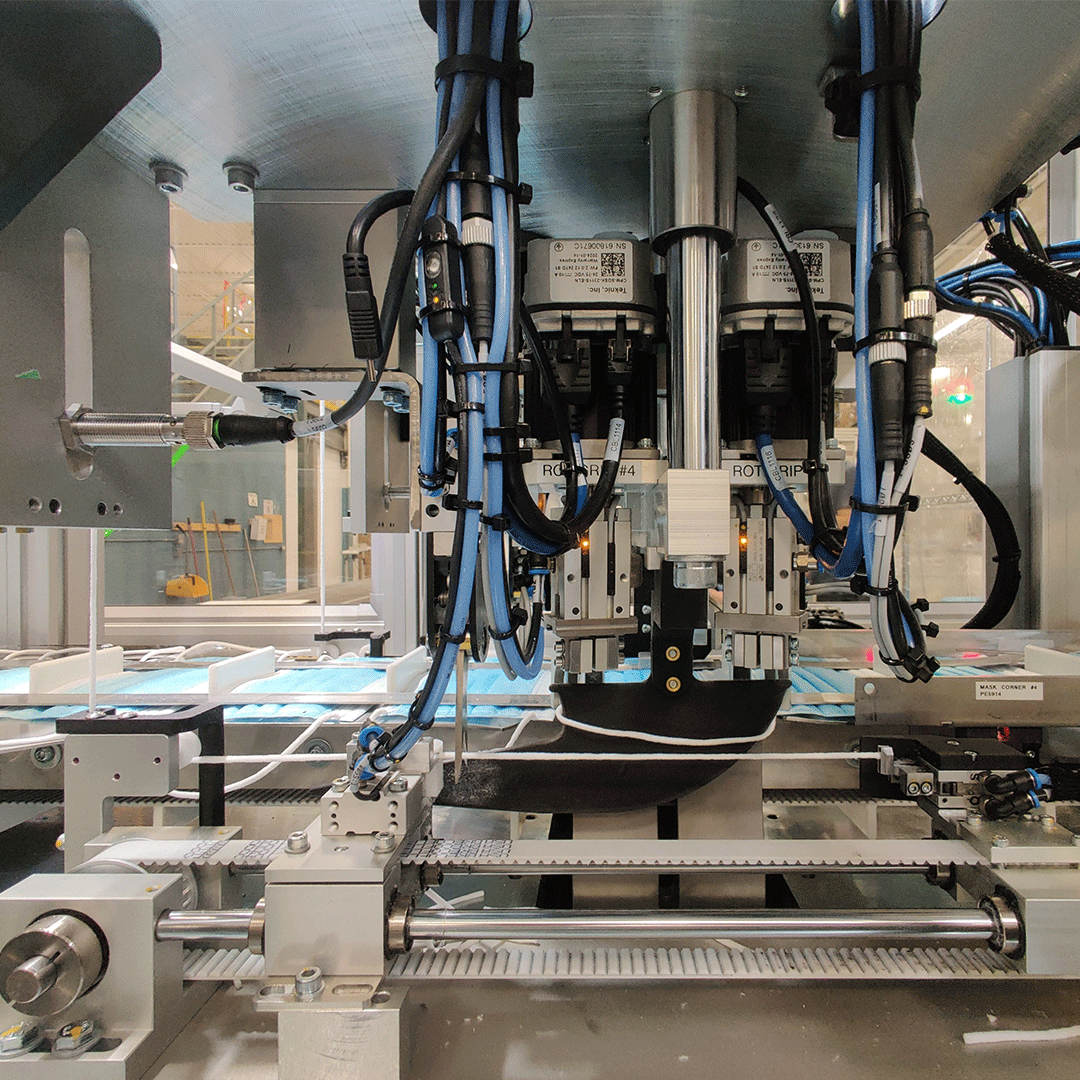

MEDICAL MASK AUTOMATION LINE
The Medical Mask Automation Line is a cutting edge medical device manufacturing system that significantly improves the production rate, quality control, and cost efficiency of medical grade masks.
VISION SYSTEM
The Vision System is an affordable retrofit of any medical mask machine for inline vision inspection and part rejection to minimize labour and maximize quality.
Technical Features
• Industry Leading Speed and Reliability: 90+ parts per minute at 90% OEE
• Built In Vision Systems and Part Rejection to Ensure Perfect Mask Production
• Automatic tension control and web guides on raw materials
• Advanced HMI control with password protection, fault history, production information and recipe Control for multiple mask types (2, 3 or 4 ply masks)

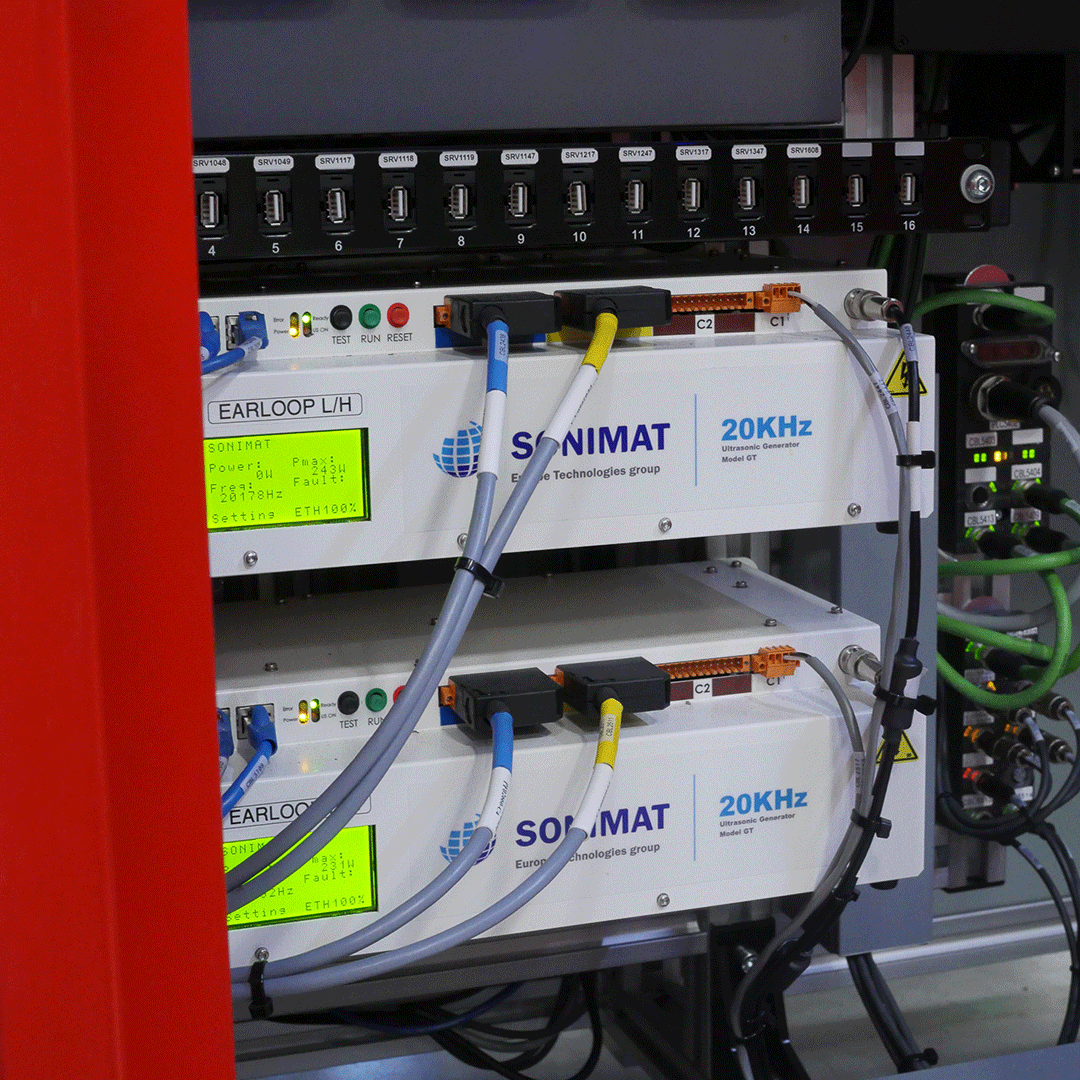

• State of the art ultrasonic welding equipment
• Support for multiple types of nose bridge materials (including 100% Aluminum)
• 100% servo driven (no mechanical adjustments required, all done through the HMI)
• Smart Monitoring for Easy Production Mapping and ERP Integration
• Maximum Components Longevity to Reduce Support Costs
• Includes PHSR and ESA Approval
Technical Features
• Add-on Vision System for Mask Machines (Including Chinese Made Mask Machines)
• Automatically separates defect masks from machine to reduce QC/QA Staff
• Supports speeds up to 120 masks/minute
• Built using trusted Hardware and Software Platforms from National Instruments and Dell
• Designed, Programmed, and Built in Canada
• Built-in Data Collection System for historical data
• Recipe control for multiple Mask types
• Built-in Repeatability and Reproducibility (GR&R) mode for Defect & Software Validation
• Over 20 different Defects including Earloop Length, Earloop Attached, Mask body Welds and more
• Quarterly Software Updates available
• Optional integration with ERP systems available
HIGH-SPEED PRODUCTION OUTPUT
Industry-leading speed and reliability means increased production output at cost-competitive levels.
PRECISE QUALITY CONTROL
Inline vision and part rejection ensures that only quality masks leave the machine, minimizing labour costs and maximizing customer satisfaction.
EXTENSIVE SAFETY STANDARDS
Built to Canadian safety and electrical requirements with PHSR and CSA approval included.
The Canadian Shield Announces Launch of Proprietary Medical Mask Manufacturing Automation and Vision Systems.
